DQ200 TCU Boards Explained: Why We Must Copy Your Original Software

If you drive a VW, Audi, Skoda or SEAT with a 7-speed DSG DQ200 gearbox, you probably already know one thing:

When it gives trouble, it gives proper trouble.

Common symptoms include:

  • Flashing PRNDS
  • No drive
  • No reverse
  • Jerking between gears
  • Delayed engagement
  • Random limp mode
  • Gearbox warning lights

One of the most common questions we hear at MVA Spares is:

“Why can’t I just fit the new DQ200 TCU board and drive?”

The simple answer is:

Because the TCU board is not just a part. It is the gearbox’s brain.

Let’s explain why the original software matters.

What Is a DQ200 TCU Board?

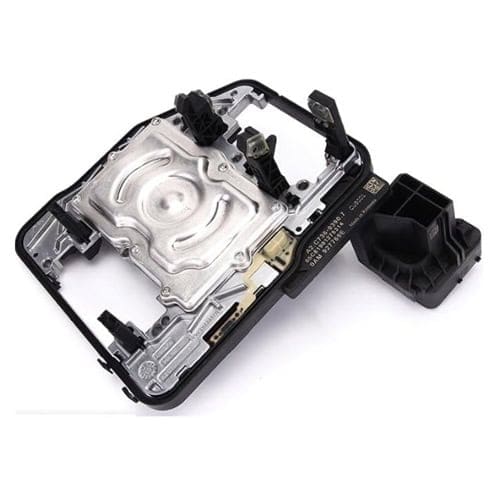

Inside the DSG mechatronic unit is the TCU, also known as the Transmission Control Unit.

This electronic board controls the gearbox operation, including:

  • Gear changes
  • Clutch engagement
  • Hydraulic pressure
  • Torque management
  • Gearbox safety functions
  • Limp mode activation
  • Communication with the engine ECU

In simple terms, the TCU tells your gearbox what to do, when to do it, and how to do it.

When the TCU board fails, the gearbox can start showing serious driving problems, even if the mechanical side of the gearbox is still fine.

The Software Is Vehicle-Specific

A DQ200 gearbox may look the same from the outside, but the software inside the TCU is not always the same.

The software is calibrated according to the vehicle’s specific setup, including:

  • Engine type
  • Torque output
  • Vehicle model
  • Model year
  • ECU pairing
  • Emissions setup
  • Clutch characteristics
  • Vehicle coding and configuration

For example, two cars may both use a DQ200 7-speed DSG gearbox, but one could be a 1.2 TSI and the other could be a 1.4 TSI or 1.6 TDI. The gearbox hardware may be similar, but the software can be very different.

That is why a replacement DQ200 TCU board is usually not plug-and-play.

What Happens If the Original Software Is Not Copied?

If a blank board, incorrect board, or wrongly programmed board is fitted, the vehicle may still not drive correctly.

Common issues include:

  • Flashing PRNDS
  • No drive
  • Vehicle stuck in neutral
  • Limp mode
  • Harsh gear changes
  • Delayed engagement
  • Incorrect gear selection
  • Clutch overheating warnings
  • DSG adaptation failure
  • Fault codes that will not clear
  • Communication errors between gearbox and ECU

In many cases, the hardware may be perfectly fine, but the vehicle still refuses to behave because the software does not match the car.

That is why software matching is just as important as the physical part.

Why We Copy the Software From Your Original Board

Where possible, we copy the software from the customer’s original TCU board onto the replacement board.

Your original board usually contains important vehicle-specific data, such as:

  • Correct firmware
  • Calibration data
  • Vehicle coding
  • Adaptation information
  • VIN-linked data, depending on the vehicle
  • ECU and gearbox pairing information

By transferring this data to the replacement board, we help ensure that the gearbox works correctly with your vehicle.

The benefits include:

  • Better compatibility
  • Fewer coding issues
  • Reduced risk of no-drive problems
  • Reduced risk of adaptation failure
  • Lower chance of immobiliser or pairing issues
  • Better first-time installation success
  • Less need for expensive dealership programming

Think of it like replacing a computer’s motherboard. The hardware may be new, but if the correct data is not transferred, the system may not work properly.

Same story here — just with more oil, fault codes, and swear words.

What If the Original Board Is Missing or Unreadable?

This is very important.

If the original TCU board is missing, damaged beyond recovery, or completely unreadable, then the original vehicle-specific software cannot be copied.

This can happen if the original board was:

  • Thrown away
  • Lost
  • Water damaged
  • Burnt
  • Previously replaced
  • Damaged during attempted repair
  • Completely unreadable due to electronic failure

In this case, the replacement board may need to be coded online using dealer-level equipment.

When Online Coding Is Needed

If the original software cannot be copied, the vehicle may require online coding.

This process usually involves:

  • Dealer-level diagnostic equipment
  • Online access to manufacturer systems
  • VIN-specific configuration
  • Pairing the TCU to the vehicle
  • Coding the gearbox control unit
  • Completing DSG basic settings and adaptation

Without the original software or proper online coding, the board may not function correctly in the vehicle.

There is unfortunately no magic shortcut. If the data is missing, the vehicle needs to be coded properly.

Why This Matters in South Africa

DSG repairs in South Africa can be expensive, especially when dealership programming, towing, and workshop downtime are involved.

By copying the original software where possible, we help make the repair:

  • Faster
  • More cost-effective
  • More reliable
  • Less dependent on dealer bookings
  • Easier for workshops to complete correctly

For many workshops and vehicle owners, this is the difference between a smooth repair and a vehicle sitting for days with no drive.

Common DQ200 TCU Failure Symptoms

If your vehicle has a DQ200 gearbox, these are some of the common symptoms that may point to a faulty TCU board or mechatronic issue:

  • Flashing PRNDS
  • No reverse
  • No drive
  • Gearbox stuck in neutral
  • Jerking when pulling off
  • Harsh gear changes
  • Delayed engagement
  • Random limp mode
  • Mechatronic pressure faults
  • Gearbox communication errors
  • Fault codes that return after clearing
  • DSG adaptation not completing

If you are experiencing any of these symptoms, the vehicle should be scanned properly before replacing parts.

Important Information Before Ordering a DQ200 TCU Board

Before buying or replacing a DQ200 TCU board, always confirm the correct information first.

We recommend having the following details ready:

  • Vehicle make and model
  • Year
  • Engine size
  • Gearbox code, if available
  • Mechatronic part number
  • Original TCU board number
  • Fault codes from a diagnostic scan
  • Confirmation that the original board is still available
  • Confirmation whether the original board can still be read

The more information you provide, the easier it is to supply the correct solution.

The Bottom Line

A DQ200 TCU board is not just a simple electronic part.

It is software-driven, vehicle-specific, and coded to work with your car’s gearbox and engine control system.

That is why copying the original software is not optional — it is essential wherever possible.

If the original board is missing or unreadable, then proper online coding may be required to make the replacement board work correctly.

Need Help With a DQ200 TCU Board?

At MVA Spares, we supply DQ200 TCU boards and assist with software transfer where possible to improve compatibility and reduce installation issues.

If you need assistance, please send us:

  • Your vehicle make and model
  • Year
  • Engine type
  • Mechatronic part number
  • Original board number
  • Fault codes
  • Photos of the original unit
  • Confirmation that you still have the original board

Our team will help you confirm the correct replacement option before you buy.
